Markins Q3iTRPs-RD Panorama Shoe 65P Ball Head

Panorama Ball Head, Q-Ball Q3iTRPs-RD Traveler with Panorama Quick shoe

Q-Ball P-version ball head is for panorama photography.

The QR-65P panorama quick shoe is innovatively designed to minimize the size and weight.

Its patented DDL mechanism provides easy and powerful locking of panning.

• Innovative design greatly reduces size and weight. (Patent Pending)
• Compatible with any Arca-Swiss type camera plates.

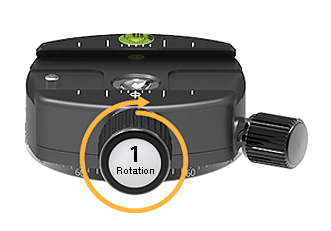

• The Quick-Turn knob opens or closes the clamp by one turn. (Patented)
• DDL Mechanism-Enhanced locking by double wedge lock. (Patented)

It also equipped with patented quick turn knob. It only takes a single turn to open or close the quick shoe jaw. You will love this fast open and close performance when you need to change the setup quickly, especially in cold weather or in need of quick response.


Small and light weight design is possible due to this powerful locking mechanism. QR-65P is equipped with a newly optimized DDL(double disc lock) mechanism. Itis a device with dual wedge locking ring and disk of round shapes. It needs less torque to lock the panning. Axis of rotation also stays the same regardless of locking. Position of locking knob is changed ofr easier control under a long nodal slide. It is more comfortable to operate and will provide you with sharper images.

Code	Q3iTRPs-RD
Color	Wine Red
Maximum Load	65lb (30 kg)
Weight	1.00lb (454 g)
Ball Diameter	1.50in (38mm)
Base Diameter	1.97in (50mm)
Height	3.85in (98mm)
Tripod Mount Hole	UNC 3/8"-16
Friction Control	Bi-Axial Progressive
Maximum Torque	130 lbf・in (150 kgf・cm)
Panning	Yes
Panorama Index	Yes
Camera Connection	Panorama Quickshoe ( QR-65P )
